Computer Key Device

In the microcomputer anti-misoperation interlock system, the computer key device acts as the core handheld terminal connecting the main unit with field equipment, undertaking critical execution functions. Its main role is to receive operation tickets issued by the intelligent anti-misoperation main unit and strictly perform operations on various on-site locks according to the ticket, thereby preventing misoperation risks at the source. The Unitech computer key device integrates intelligent voice playback, speech recognition, and fingerprint identification technologies, achieving advanced functions such as intelligent voice ticket-reading, voice prompts, and multi-level authorization. The product has been comprehensively upgraded in performance, functionality, and quality, better meeting user demands in real-world applications.

Product Advantages

Comprehensive intelligent management and control

Its features include ticket clearing, self-learning, memory, lock code verification, ticket termination, step skipping, real-time clock, battery status detection, self-diagnosis, voice ticket-reading, and fingerprint recognition. It can also record and browse operation tickets and operation information, with data retention of up to 10 years after power-off.

Applicable locks

It can unlock and detect a variety of lock types, including mechanical code locks, electronic code locks, voltage detectors, status detectors, intelligent trip plates, smart locks, and interlock boxes.

User-friendly HMI experience

Equipped with a 16M-color true-color display with adjustable brightness and contrast, supporting touch control. The user-friendly interface design and online help system ensure simple and convenient operation.

Integrated and reliable design

A newly designed integrated structure for code acquisition, detection, and unlocking. It is lightweight, stable, and reliable, with automatic battery fault detection to ensure low-power operation and extended battery life.

Technical Specifications

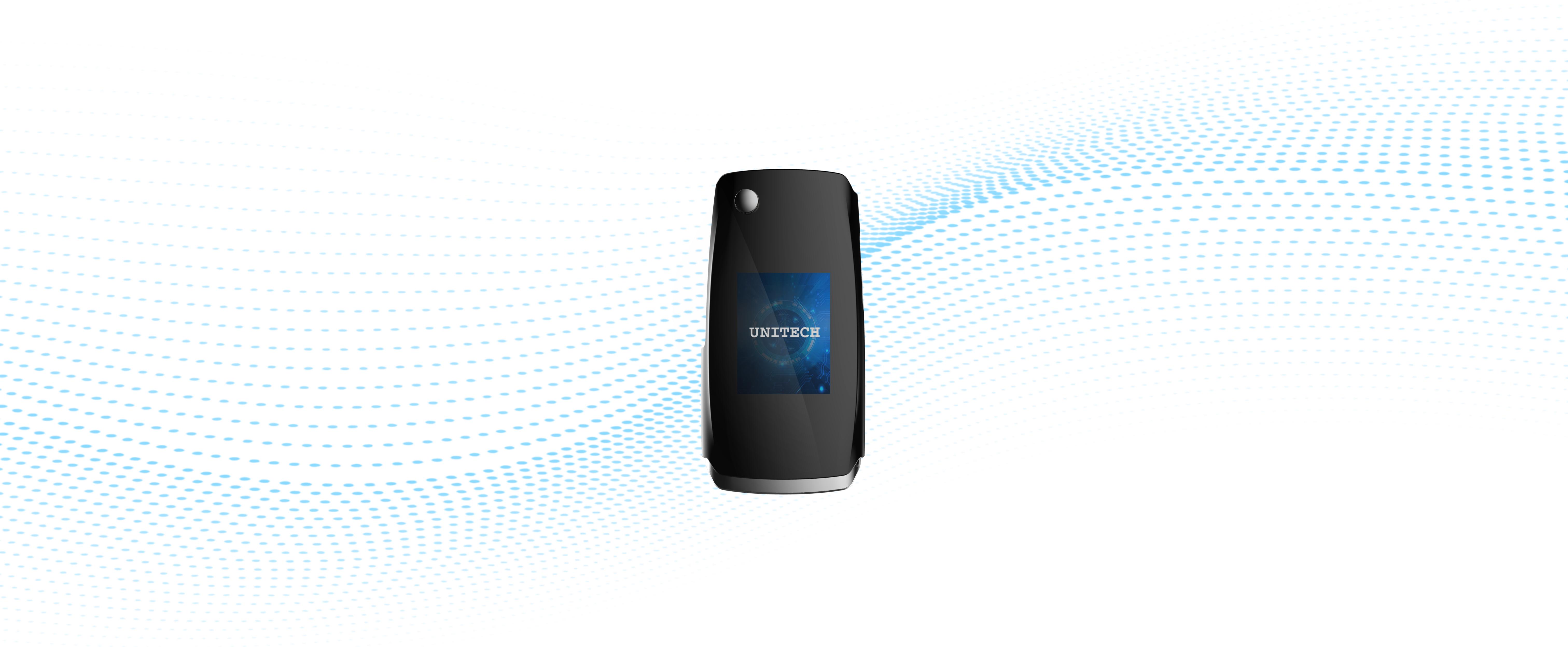

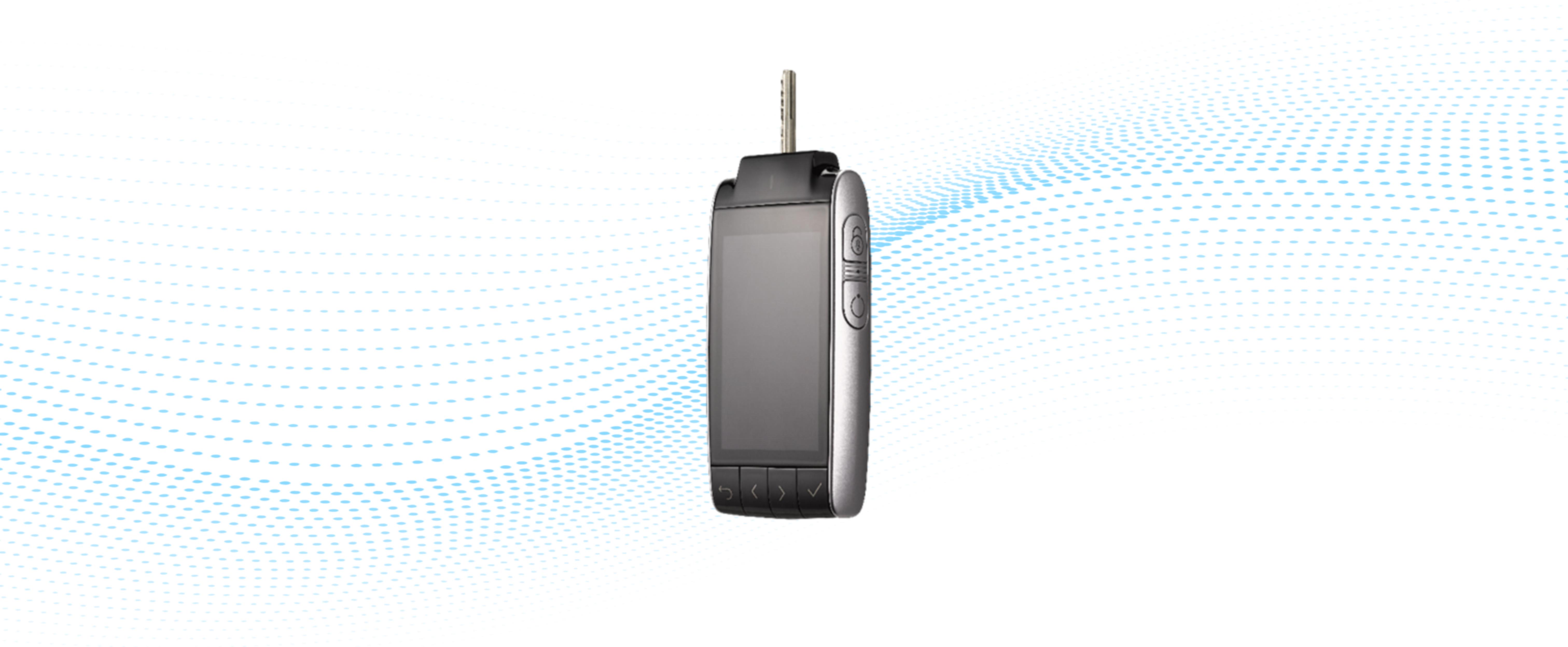

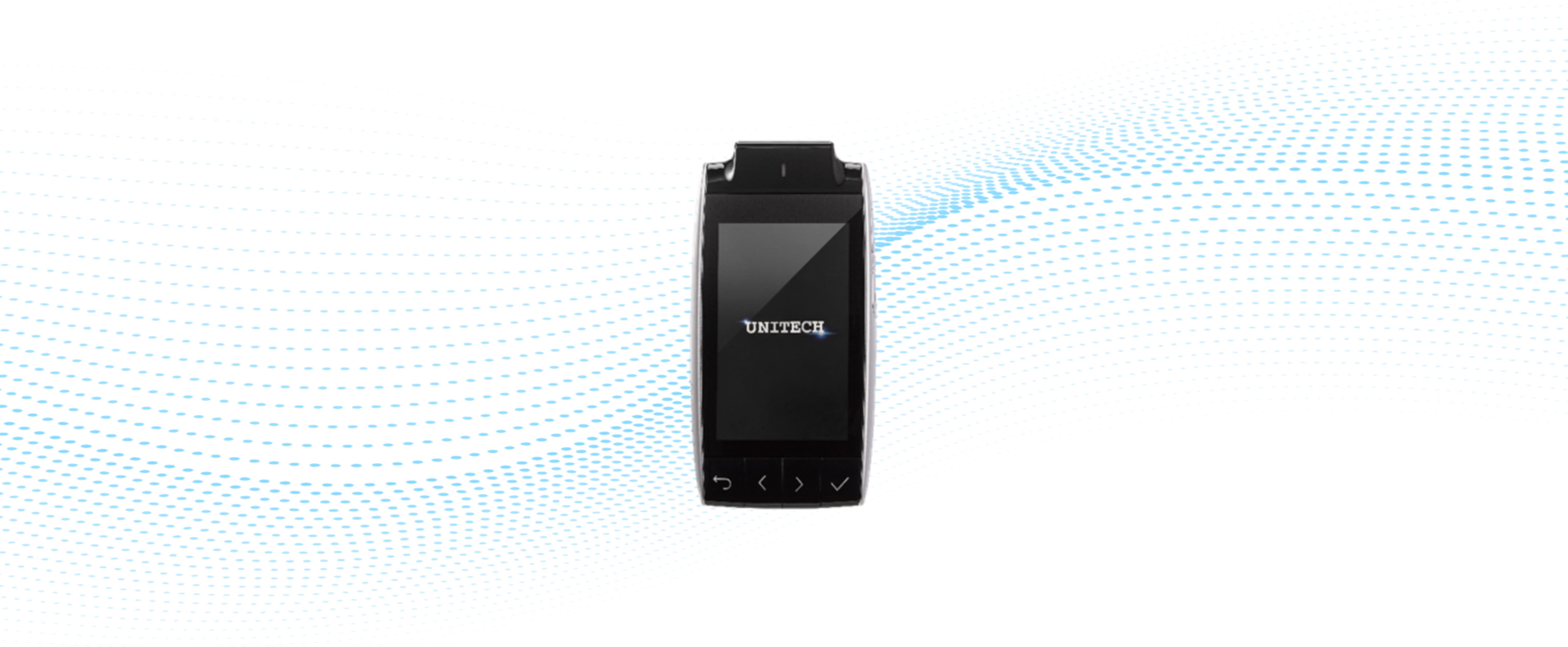

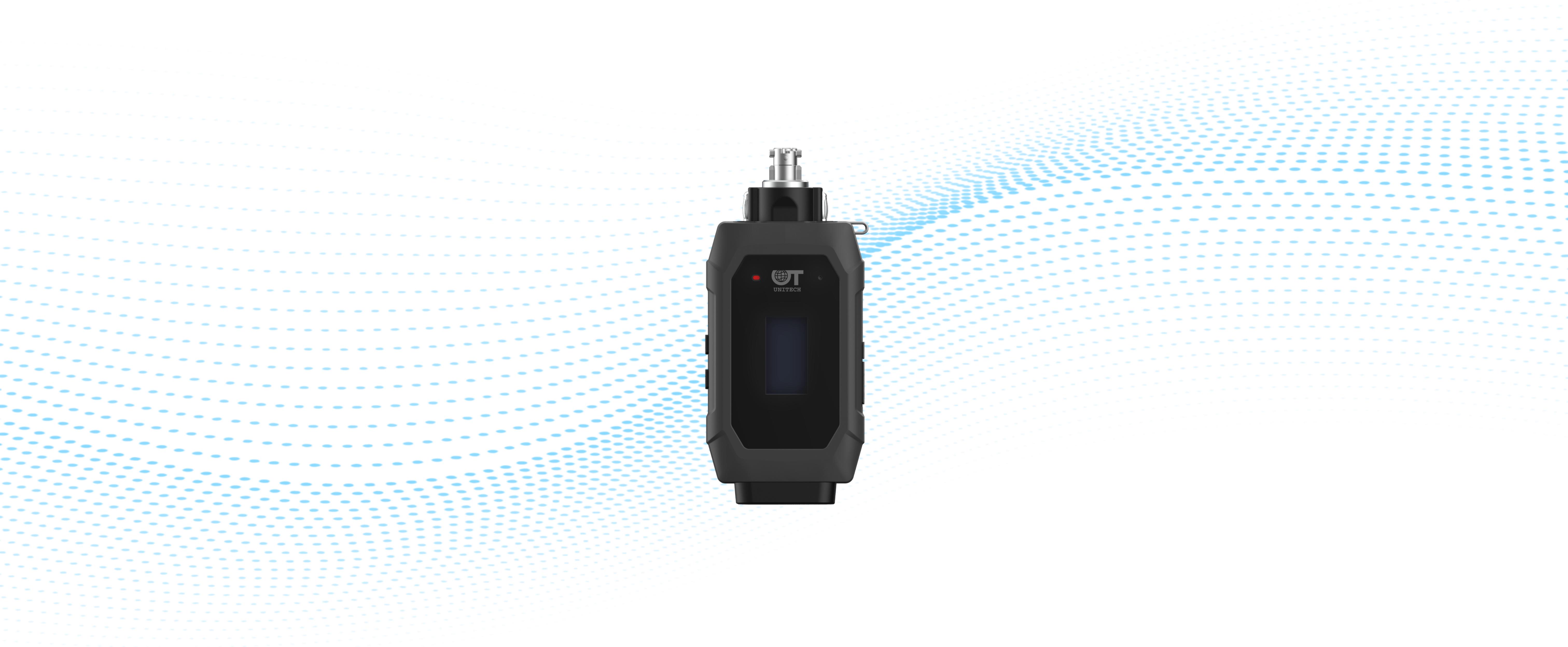

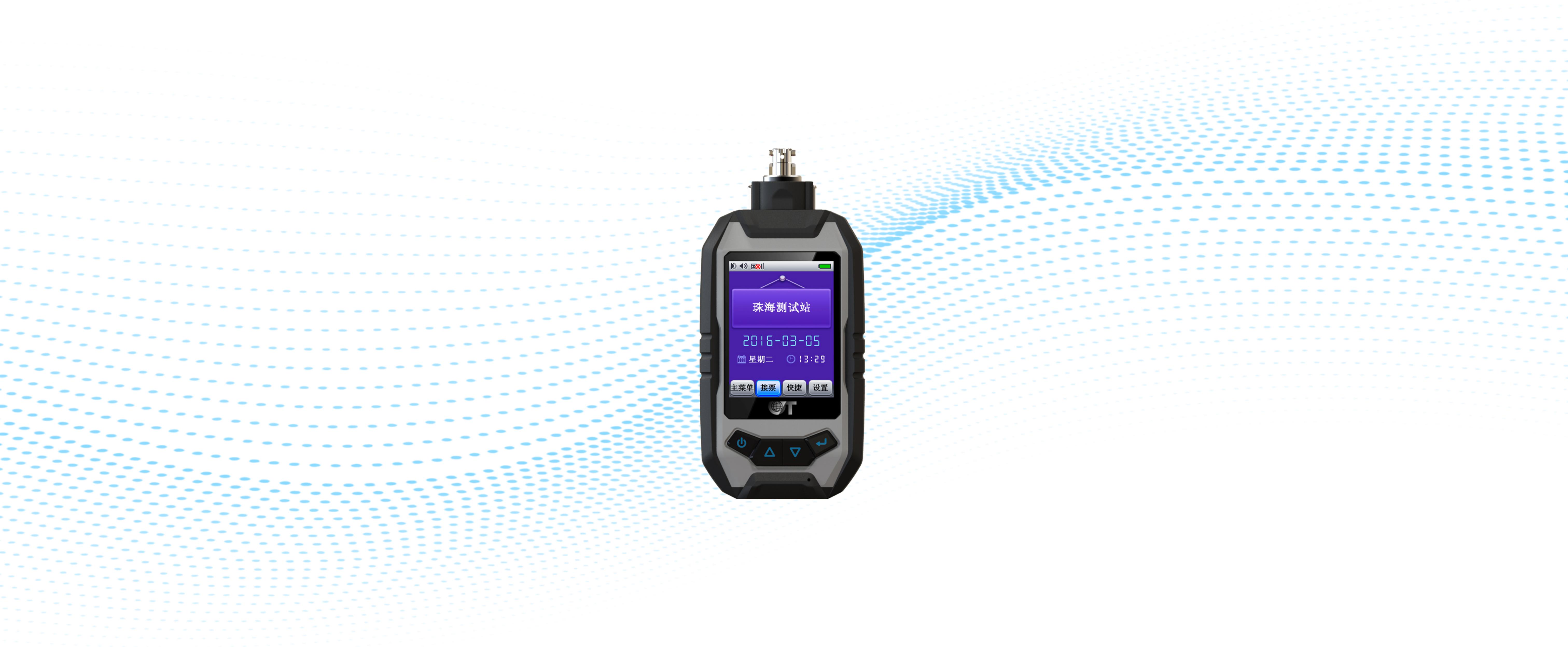

Parameter	DNYS-4G	DNYS-3C	JSQ-3A	JSQ-4B
Key interface type	Blade	Single-rod	Single-rod	Blade
Main functions	Its features include ticket receiving, ticket clearing, self-learning, memory, lock code verification, ticket termination, step skipping, voice prompts, feedback transmission, voice ticket-reading, real-time clock, battery status detection, and self-diagnosis.	Its features include ticket clearing, self-learning, memory, lock code verification, ticket termination, step skipping, real-time clock, battery status detection, self-diagnosis, and audio recording. This computer key device can also record and browse operation tickets and operation information, with data retention of up to 10 years after power-off.	The JSQ-3A unlocking device is designed as a dedicated unlocking tool, capable of unlocking both keyless and single-hole lock units. This product can be used together with smart handheld terminals (including tablets, smartphones, PDAs, etc.) in transmission networks, distribution networks, grounding management, and E-key systems. For example, when paired with a tablet, it can serve as an inspection or distribution network unlocking terminal; when paired with a PDA, it can function as a grounding management unlocking terminal; when paired with other smart handhelds, it can be used in the E-key system.	This product can also be used together with smart handheld terminals (including tablets, smartphones, PDAs, etc.) in transmission networks, distribution networks, and grounding management systems. Its features include self-learning, ticket receiving, feedback transmission, and lock code verification.
Number of operation tickets receivable at one time	≥ 1000 items	≥ 1000 items	≥ 1000 items	≥ 1000 items
Number of identifiable coded locks	≥ 65,535 units	≥ 65,535 units	≥ 65,535 units	≥ 65,535 units
Operation ticket storage capacity	≥2048KB	≥2048KB	≥2048KB	≥2048KB
Communication method	Supports multiple data transmission methods such as Bluetooth, wireless UT-NET, NB-IoT, and WAPI, which can be optionally configured as required.	Its optional modules include high-speed infrared IRDA, wireless UT-NET communication, low-power Bluetooth, and wireless mobile communication, configurable as needed.	Its optional modules include high-speed infrared IRDA, wireless UT-NET communication, low-power Bluetooth, and wireless mobile communication, configurable as needed.	Bluetooth, WAPI
Fingerprint identification	Supported	-	-	-
Audio recording	Supported	Supported	-	-
Display screen	16M-color Blanview TFT true-color display, brightness and contrast adjustable, touch control supported	262K-color 2.4-inch TFT display, 240x320 resolution	128x64 blue OLED display	128x128 color OLED display
Dimensions	118×60×20mm	125×59×27mm	106×47×20mm	82×42×18mm
Power supply	2050mAh	1600mAh	900mAh	500mAh
Unlocking lifespan	≥ 50000 times	≥ 50000 times	≥ 50000 times	≥ 50000 times
Number of continuous operations without charging	≥512	≥512	≥512	≥512
Operating environment	Operating temperature: -25℃ to +70℃, average relative humidity ≤ 95%	Operating temperature: -25℃ to +70℃, average relative humidity ≤ 95%	Operating temperature: -25℃ to +70℃, average relative humidity ≤ 95%	Operating temperature: -25℃ to +70℃, average relative humidity ≤ 95%
Mean time between failures (MTBF)	50000h	50000h	50000h	50000h
Protection level	IP54	IP54	IP54	IP54
